ETS-24AT-E01
1. Model No.
2. Model Name

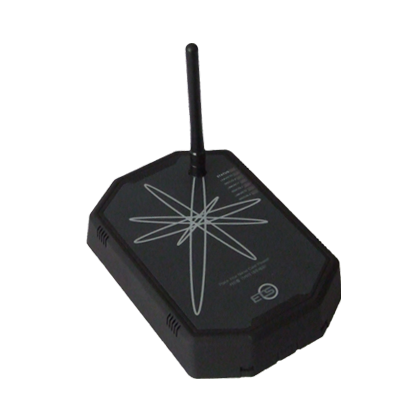

2.45GHz 대역 ACTIVE TAG READER
3. Frequency
2.45GHz ± KHz
4. Air Interface
FHSS
5. Tx Power
1mW / 10mW
6. Service Range
Tx Pw: 1mW: 8~10m, 10mW: 70~100m
7. Dimension
W112 * H161 * D30
8. Operation Power
DC 5V 2000mA
9. Host I/F
ETHERNET
10. Data Protocol
TCP/IP, UDP, ARP
11. GPIO
DI: 2, DO: 2(RELAY CONTACT)
12. Ethernet Switch
2 Port
ETS-24AT-L01
13. Operating system
Embadded linux
